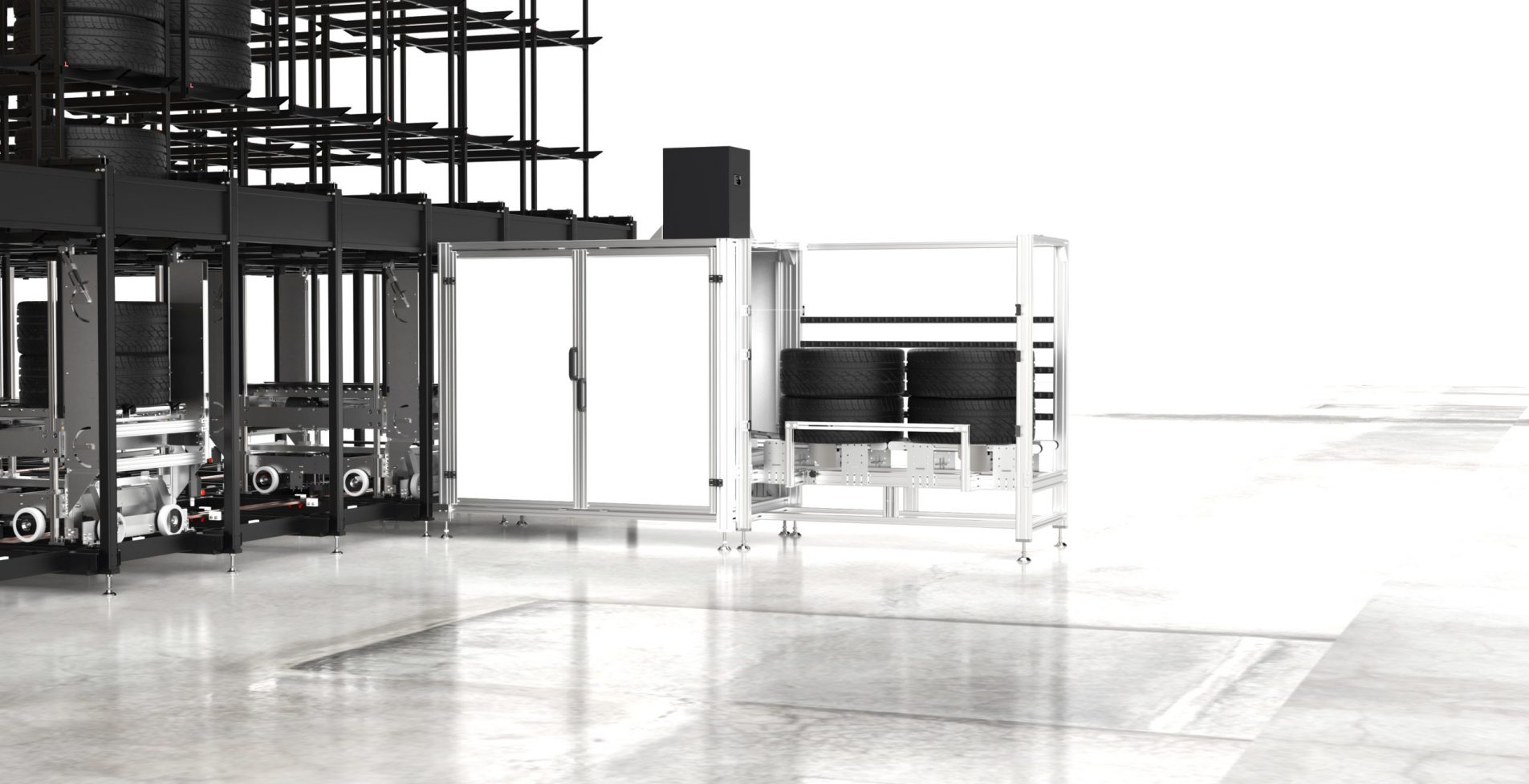

RoverLog® Automatic warehouse for tires
Advantages
The RoverLog storage system was developed to automatically and efficiently store large-volume goods in a small space and to make them available again at the desired location (goods-to-man principle). It is integrated into the existing warehouse to save space. The system consists of various components that are connected to one another by a support / travel structure. The core of this are the RoverLogs, which move lengthways and crossways to bring the goods to the storage location and to form free-standing stacking columns there.
Videos
Components
Previous
Next
Technical data
Support structure
> The RoverLog system is controlled by the customer warehouse management software.
> Optimized route planning for RoverLogs.
> RoverLogs work cooperatively to process orders.
> Order preparation without staff
> Automatic weight control for every grid cell.
The RoverLog system can be controlled using the operating system-independent graphical user interface (GUI).
The following actions are possible:
> Manual control of a RoverLog
> Security controls
> Maintenance work
> System start and correction of errors
Storage and retrieval unit
> Travel speed in X and Y directions up to 3m/s.
> Loads up to 740kg (640kg with conveyor) per stack
> Power supply through the support structure. No charging times necessary for the batteries.
> Conveyor with speed up to 0.3m/s.
> The RoverLog distributes the goods evenly in the bin
> Unlocks the bins in the stack as well as the bins in the support structure.
> Designed according to DIN EN 528.
Comissioning port
> 2 Versions: with (a) doors or (b) high-speed door
> Ergonomic loading and unloading of goods in load carrier inlays made of wood or cardboard.
> Stretch straps to protect goods from falling out.
> Power connection available on the port to connect your computer.
> Brake mechanics to secure and stop the RoverLogs safely and securely in entry and exit.
> Protection against unauthorized entry into the storage system.
Comissioning port tires
> Automatic contour control of goods.
> Conveying at a safe speed of 0.25m/s.
> goods are inserted at an ergonomic height of 800mm.
> Buffer space to continue picking work in case of busy warehouse.
> Electricity socket at the electrical cabinet, to power your devices.
> Protection against breaching safety zones.
Warehouse system
> Extendable to changing needs.
> The position of RoverLogs and bins are tracked absolute and can be easily restored even after a power failure.
> The maintenance area allows quick and easy on-site maintenance.
> Recuperation during bin removal.
> The storage system complies with BGR 234.
> Safety concept checked by
Software
> The RoverLog system is controlled by the customer warehouse management software.
> Optimized route planning for RoverLogs.
> RoverLogs work cooperatively to process orders.
> Order preparation without staff
> Automatic weight control for every grid cell.
The RoverLog system can be controlled using the operating system-independent graphical user interface (GUI).
The following actions are possible:
> Manual control of a RoverLog
> Security controls
> Maintenance work
> System start and correction of errors
